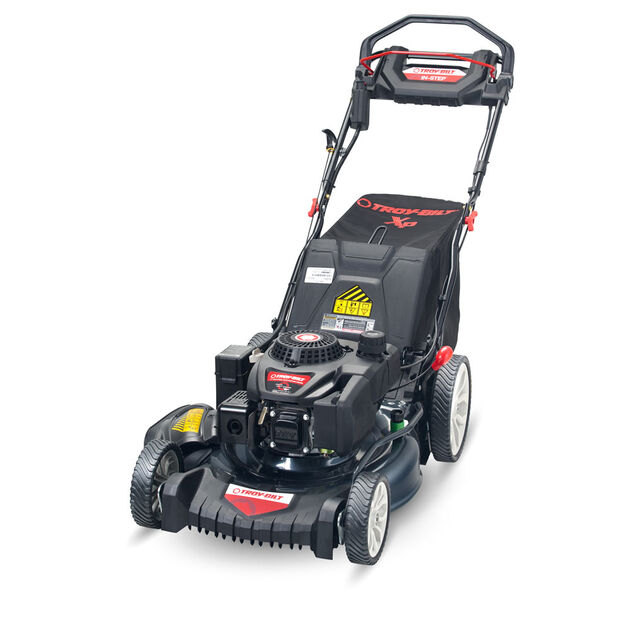

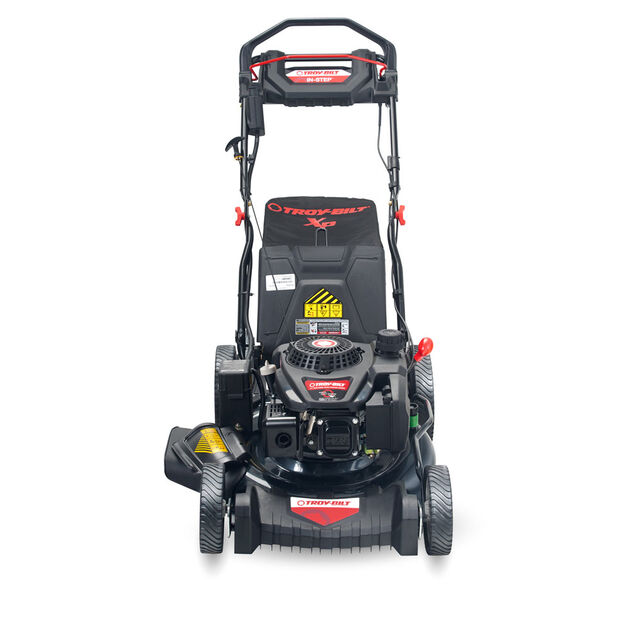

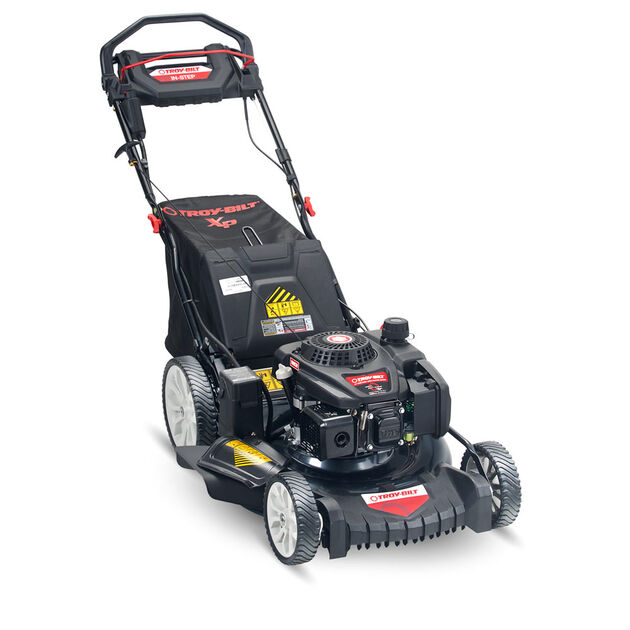

21" 159cc RWD Self-Propelled XP Mower with Electric Start
Model:
12ACP3MT563
This Troy-Bilt self-propelled lawn mower features a reliable 160cc Honda® GCV Auto Choke engine and offers push button electric start - no pull starting required. The TriAction™ cutting system features a rake bumper to lift grass upright, a specially designed blade for a finer mulch and a symmetrical deck for superior grass flow, eliminating clumping. Also features InStep™ variable speed control to lets you comfortably customize your speed and provides more control of the rear wheel drive transmission on all terrains and conditions. When it comes to getting rid of grass clippings, you have a choice of side discharge, bagging or mulching. With single-lever height adjusters for quick changes in cutting height, you can depend on a Troy-Bilt mower to be easy to use and reliable in your yard. Your work in the yard inspires us to design, test and build the most reliable mowers we possibly can.
-
This item is currently not available
Sale Price
No Price Available
Features
Features
- 21" TriAction™ Cutting System featuring symmetrical deck with pass-thru grass entry, aerodynamic S-blade.
- Deck wash kit included. Simply attach hose. Water and blade action cleans inside of cutting deck.
- Bumper design includes Euro-inspired teeth that funnel grass into the deck.
- 4-year Limited Warranty
- Push Button Electric Start
Specification
Engine
- Engine Brand Troy-Bilt® with Check, Don't Change Never Change the Oil™
- Engine Displacement 159cc
- Fuel Tank Capacity 1.3 qts
- Engine Start Push Button Electric Start
- Engine Oil Capacity 20 oz
Drive System
- Drive System Self-Propelled, RWD
Cutting Deck
- Deck Cutting Width 21-in
- Cutting Modes Side discharge, mulch, and rear bag capabilities
- Deck Wash Yes
- Deck Material Steel
- Cutting Height Range 1.25"-3.75"
- Deck Positions Single lever 6-position
Controls
- Handle Adjustable Troybilt INSTEP
Wheels
- Rear Tires 11-in
- Front Tires 8-in
Additional Specifications
- Recommended Oil Type 10W30
- Model Number 12ACP3MT563
Warranty
- Residential Warranty 4-Year limited residential warranty
Blade Specifications
- Blade Type S-Blade
Grass Collector
- Grass Bag Capacity 2.3 Bushel
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Operator Manuals
Model | Manual | Form Number | |
|---|---|---|---|
| 12ACP3MT563 | MAN:OWN:COL3X_159CC_196CC_ENG: | ||
| MAN:OWN:COL3X_159CC_196CC_ENG: | 769-17031B | ||
| MAN:OWN:DIGEST_159_196_224CC_E | 769-25350 | ||
| MAN:OWN:DIGEST_159_196_224CC_E | 769-26100 | ||
| MANL:OPER:BILING:12X:21in GEN: | 769-22911 | ||
| SHEET:SUP:BILING:11X:12XTROY | 769-23670 | ||
| SHEET:SUP:BILING:EPA:CARB:EVP: | 769-23591 | ||
| SHEET:SUP:BILING:EPA:CARB:EXH: | 769-23593 |
